Residential / Commercial Steel Picket Fence Wrought Iron Railing Fence Waterproof

The fence is constructed of steel formaximum longevity and strength,and crafted to look

like traditional wrought iron fence.

While aluminum fence has become popular for property enclosures

due to its corrosion resistance and weight, steel is a stronger alternative.

With a chemically bonded powder coated finish and zinc phosphate undercoat, a steel fence panel

can outlast an aluminum panel even in harsh conditions.

Steel construction allows for longer panels without sag under weight or stress, which also allows for fewer

post holes and less labor!

1. Material Of Wrought Iron Railing Panels

High Quality Q235 Galvanized steel pipe

2. Surface treatment ofWrought Iron Railing Panels

Galvanized and PVC coating

PVC Coating Colors: green, white, black,yellow,red etc.

3. Process of Wrought Iron Railing Panels

The Wrought Iron Railing Panels is made of steel pipes and then assembling by hands. After that, thesurface can be powder coated into different colors.

A) Fence Panel Process

straighten & cut short the wire-Welding-Bending-Galvanizing- Parkerizing- powder/pvc coating - packing

B) Fence Post Process

cut short the tube-hole frilling-Galvanizing-Sandblasting-powder/pvc coating-rivet nuts installing

4. Property of Wrought Iron Railing Panels

corrosion resisting, aging-resistant,sunshine-resistant and weather-resistant, easy to transport and easy installed.

5. Wrought Iron Railing Panels Specifications

Wrought Iron Railing Panels Upright pailings ,Upright pailing picket are crimped spear deterrent uninvitors ,intruders

Wrought Iron Railing Panels rails available 2,3 4rails depand on customer requirements avaiable punched rails and

full weld rails with upright pails

Wrought Iron Railing Panels Post

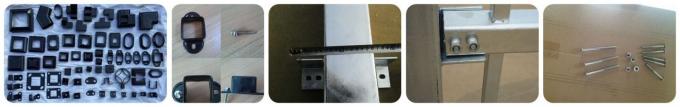

Wrought Iron Railing Panels accessories Included 1 pcs post caps plus 4 set security bracket and 12 pcs self drilling screw

6. Wrought Iron Railing Panels Treatment

Pre-Galvanized then electrostatic powder spray coated

Full Hot dipped galvanized then electrostatic powder spray coated

Residential Fence Grade (G60 Galvanized Steel)

Picket: 16mmx16mmx1.0mm ( 5/8'sq x 19ga)

Rail: 35mmx 35mm x 1.2mm(1-3/8'sq x 18ga)

Post: 50mmx50mmx1.5mm (2'sq x 16ga)

Fence Width: 2400mm(8)

Fence Height(mm): 914mm,1067mm, 1219mm,1372mm,1524mm,1829mm

Fence Height(Feet):3, 3.5, 4, 4.5, 5, 6

- Post enlarged by 25% from 2” to 2-1/2” square
- Post resalesrced by internal rib to resist bending
- Rail enlarged by 25% from 1” to 1-1/4” high
- Rail resalesrced internally to resist side impact
- Picket enlarged by 25% from 5/8” to 3/4” square
- Holes to mount rail eliminated from post design;
replaced by stronger exterior bracket

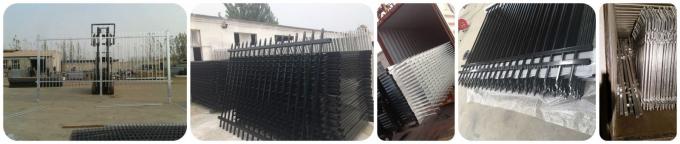

7. Packaging & Delivery

Packaging Details: In steel pallet

Delivery Time: 15-20 days after receiving the deposit
